034Motorsport Turbo Inlet Pipe - MK8 R & 8Y S3 EA888 Gen 4

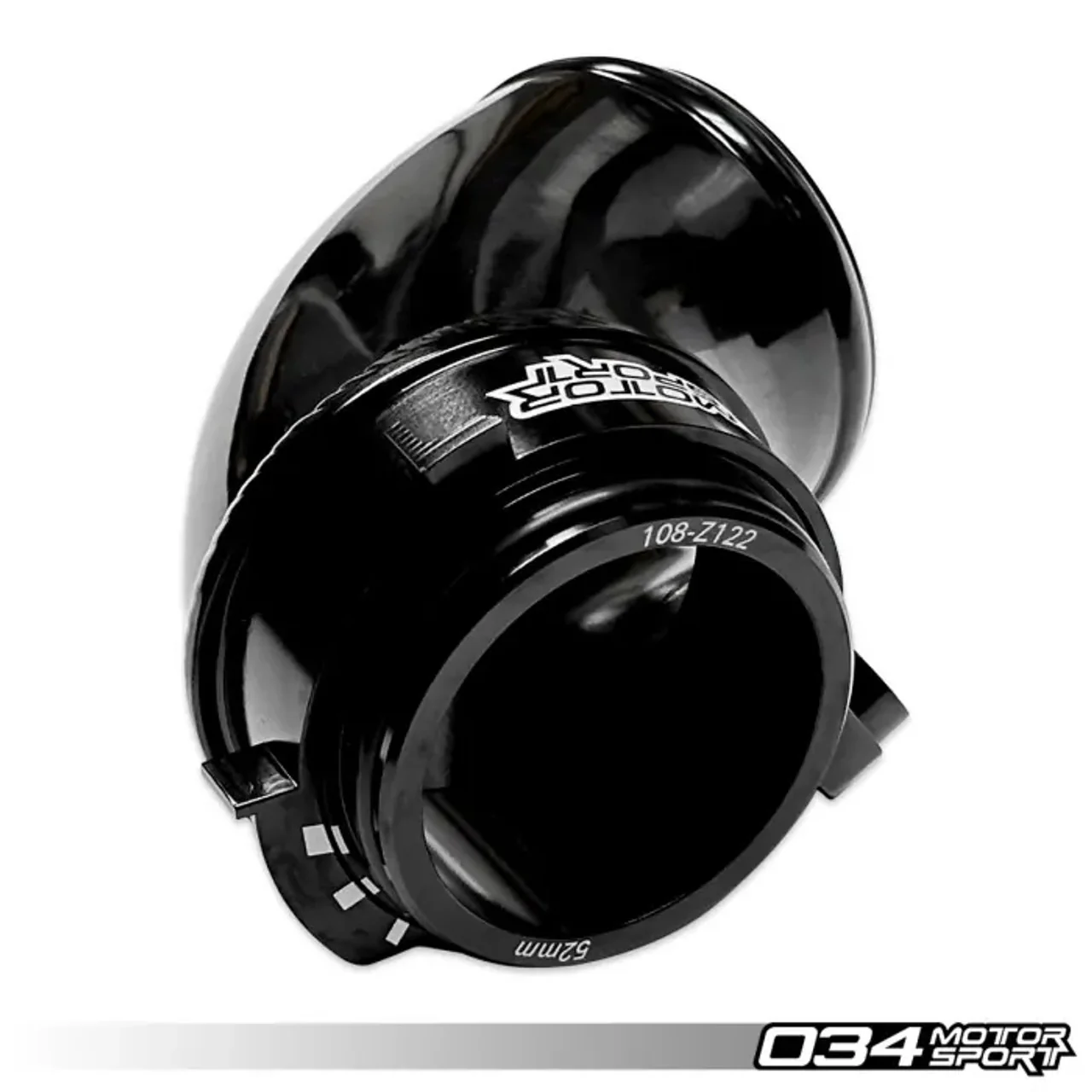

The 034Motorsport Turbo Inlet Pipe for the 2.0T MQB-Evo, Volkswagen MK8 Golf R, and Audi 8Y S3, is an essential upgrade to optimize power by eliminating a critical flow restriction in the intake tract. The MQB-Evo 2.0T Turbo Inlet Pipe is manufactured from 70mm thin wall 6061-T6 aluminium for maximum airflow, with a machined 6061-T6 billet aluminium compressor inlet flange that perfectly mates to allow smooth air entry into the compressor housing. Machined 6061-T6 billet aluminium elements are used to retain the original PCV hose fitting and original mounting location.

The MQB-Evo 2.0T Turbo Inlet Pipe is designed to work with OEM-style turbo inlet hoses. The bead-rolled edge retains the inlet hose securely to the inlet pipe. The final touch is a durable black wrinkle-coat finish for long-lasting good looks with a laser etched 034 logo to top it all off!

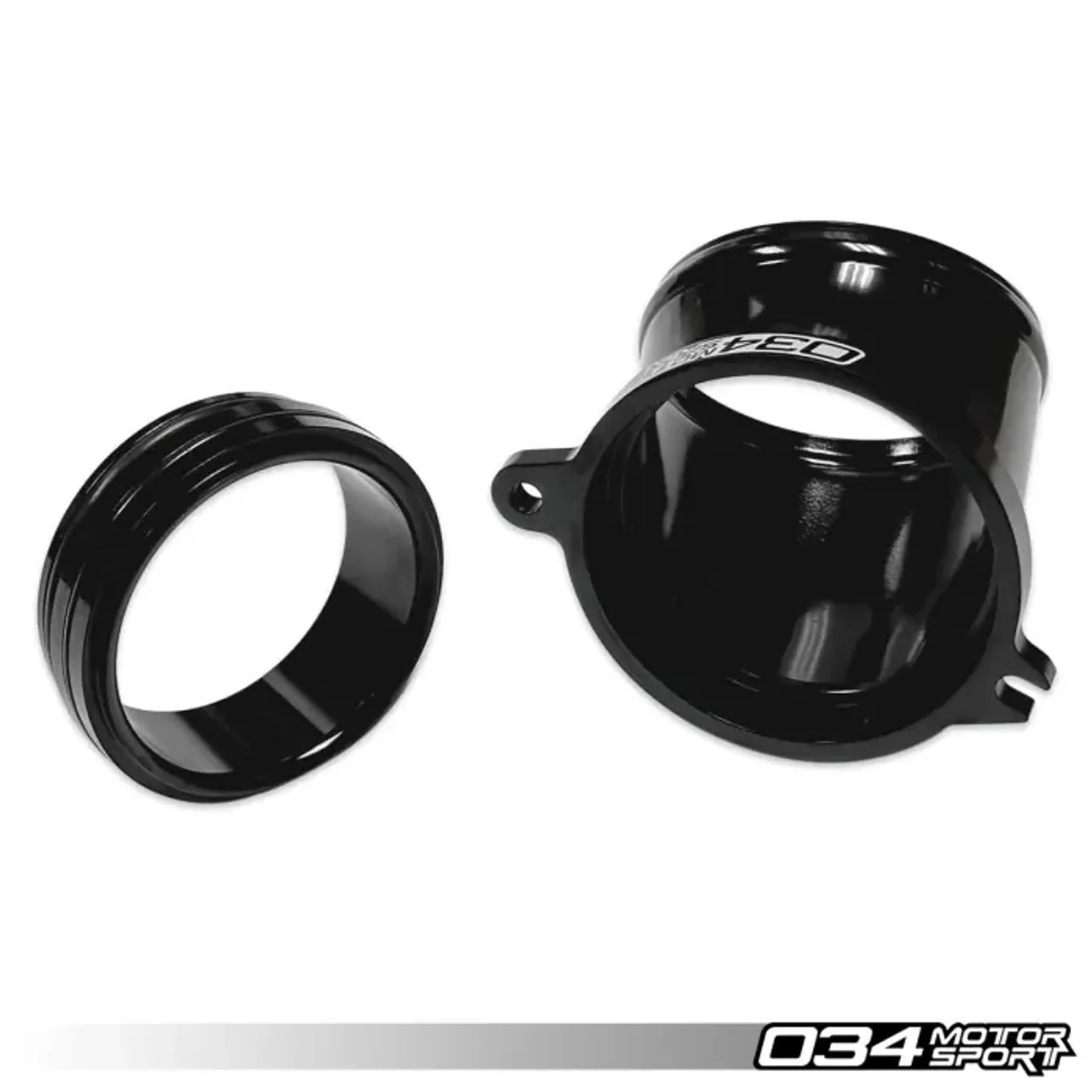

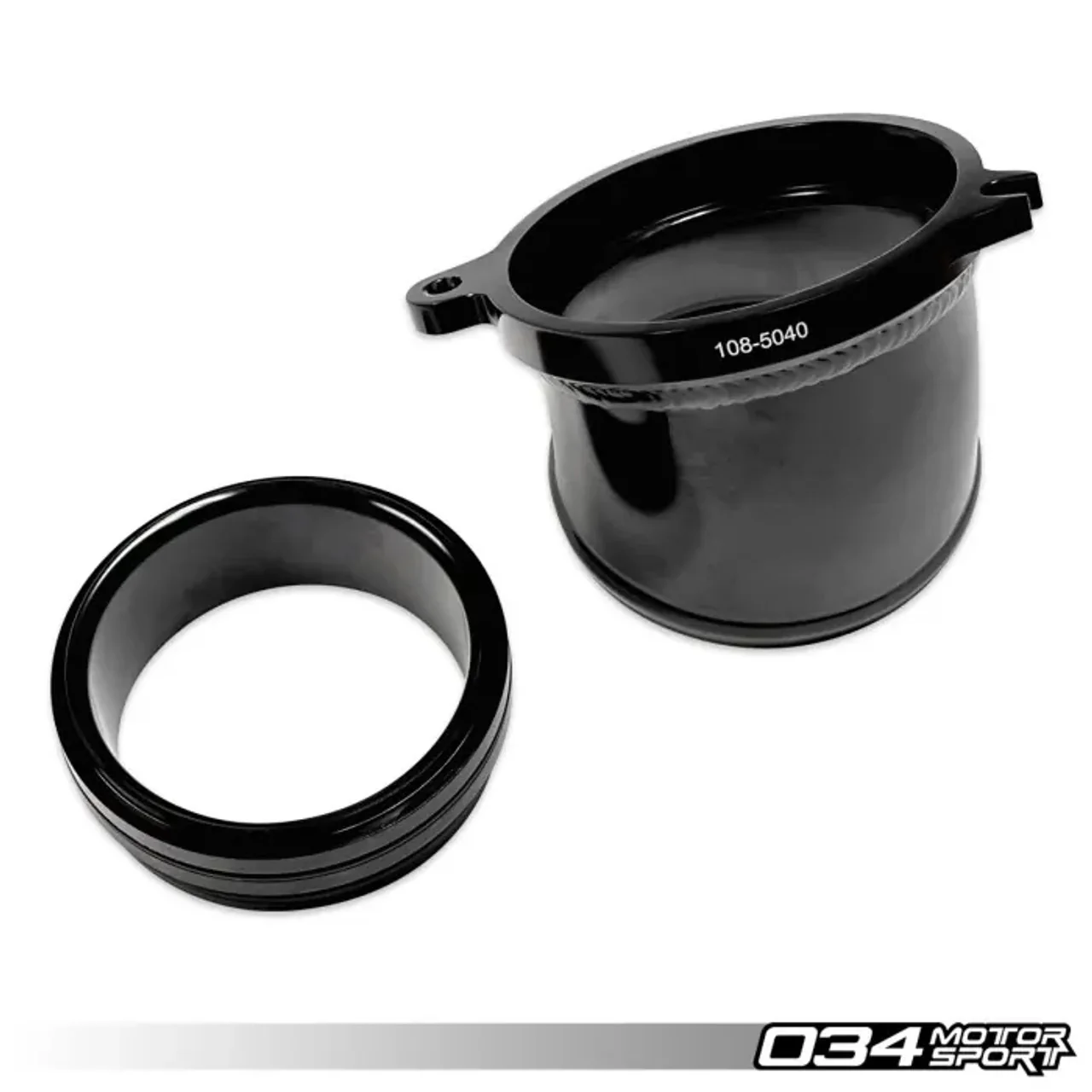

The 034Motorsport Turbo Inlet Pipe utilizes a CNC-machined billet aluminium adapter ring that is perfectly matched to the factory turbo compressor housing. This unique oval shaped adapter ring is designed to be a smooth air entry between the turbocharger and Turbo Inlet Pipe that utilizes an O-ring to seal the adapter to the inlet. This solution will allow the 034Motorsport Turbo Inlet Pipe adapt to future turbo upgrades with larger turbo inlet adapter ring sizes.

FEATURES:

• CNC Machined, Billet Aluminium Flange
• Compressor Inlet Flange Adapter Machined for Smooth Airflow Into Compressor Housing
• CNC Machined 6061-T6 Aluminium Turbo Inlet Adapter to Match Turbo Inlet for Maximum Airflow
  • Additional Adapter Rings Will Be Available In the Future
• Proven Power/Torque, and Airflow Gains
  • OE 8Y S3 / Golf R Assembly: 437.38 CFM @ 28 in.H20
  • Insuction Bundle: 535.81 CFM @ 28 in.H20
• ~ 22.50% Increase
• Direct Bolt-on Installation

WHAT'S INCLUDED:

• (1x) Turbo Inlet
• All Necessary Hardware
